Gallery

Renders, simulations, and visualizations of the Wattplot. Click any image to view it full-size. To add a new concept, drop a PNG into docs/gallery/<category>/ via GitHub and add a card below.

Build 11 renders

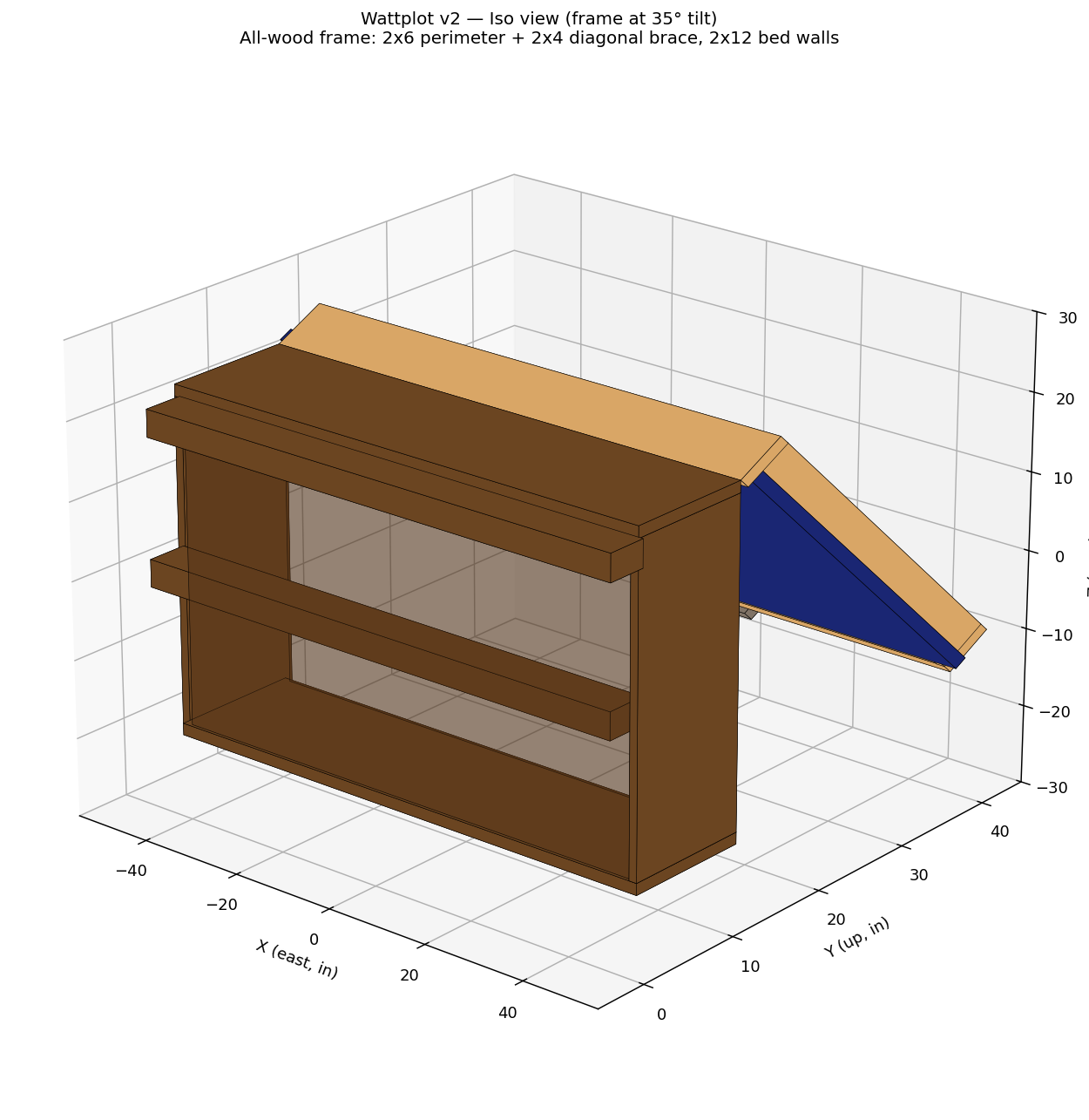

Isometric, full-size

8 × 5 ft bed, 35° tilt, bifacial panel. The marquee render.

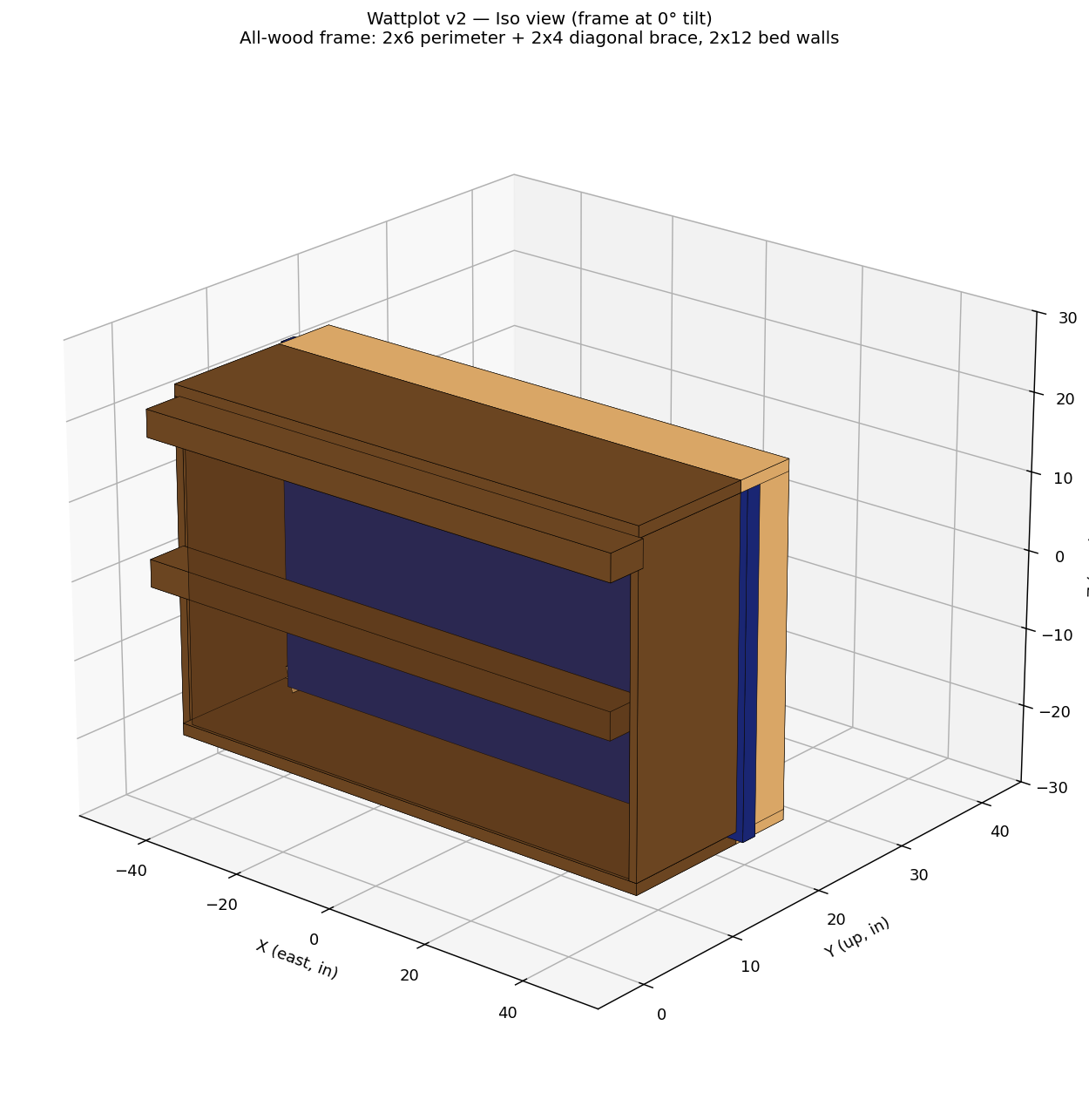

Folded flat, isometric

Same build, panel at 0° — the wind-folding pose.

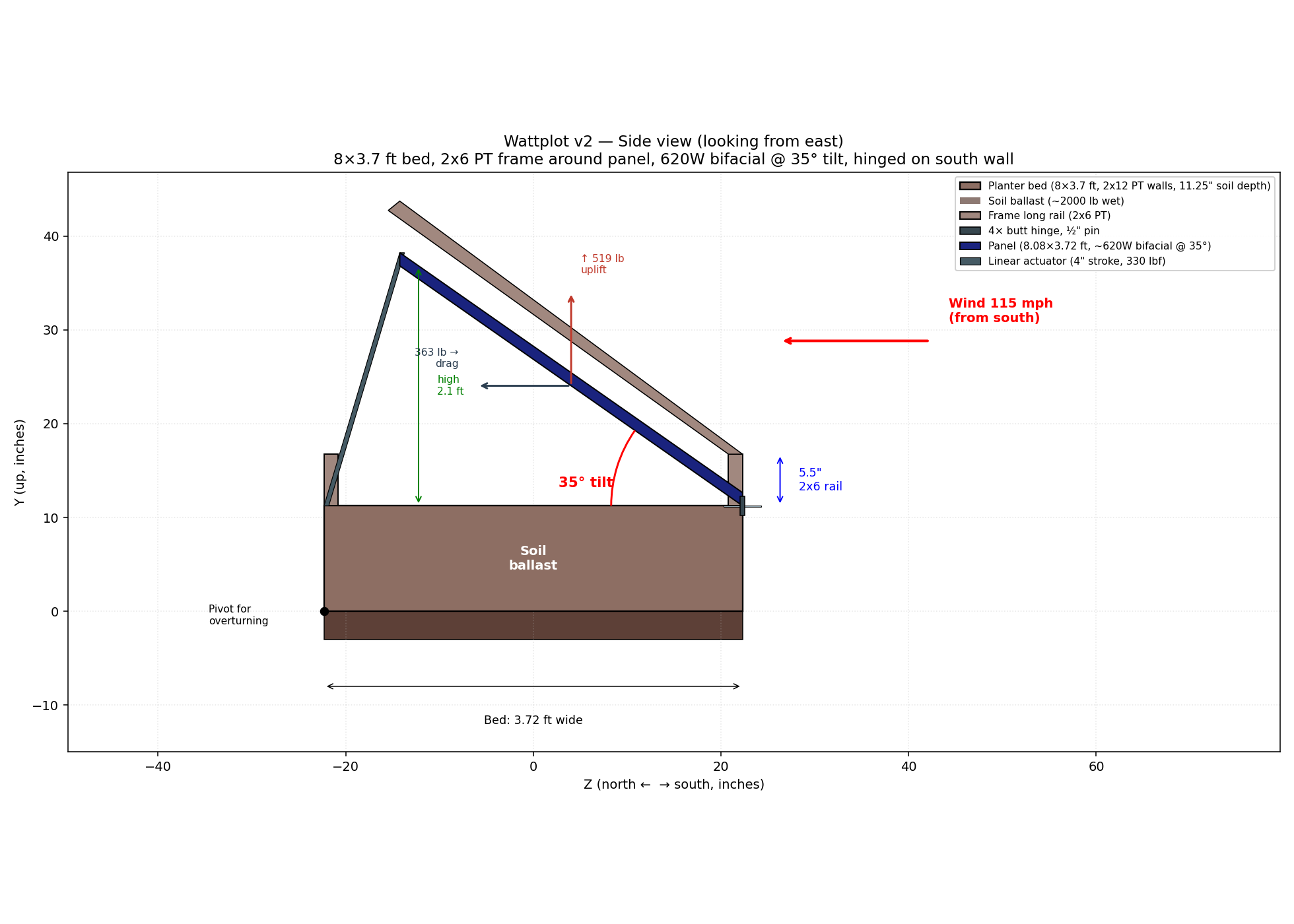

Side view, 35° tilt

"Power" mode. Structural max, max kWh.

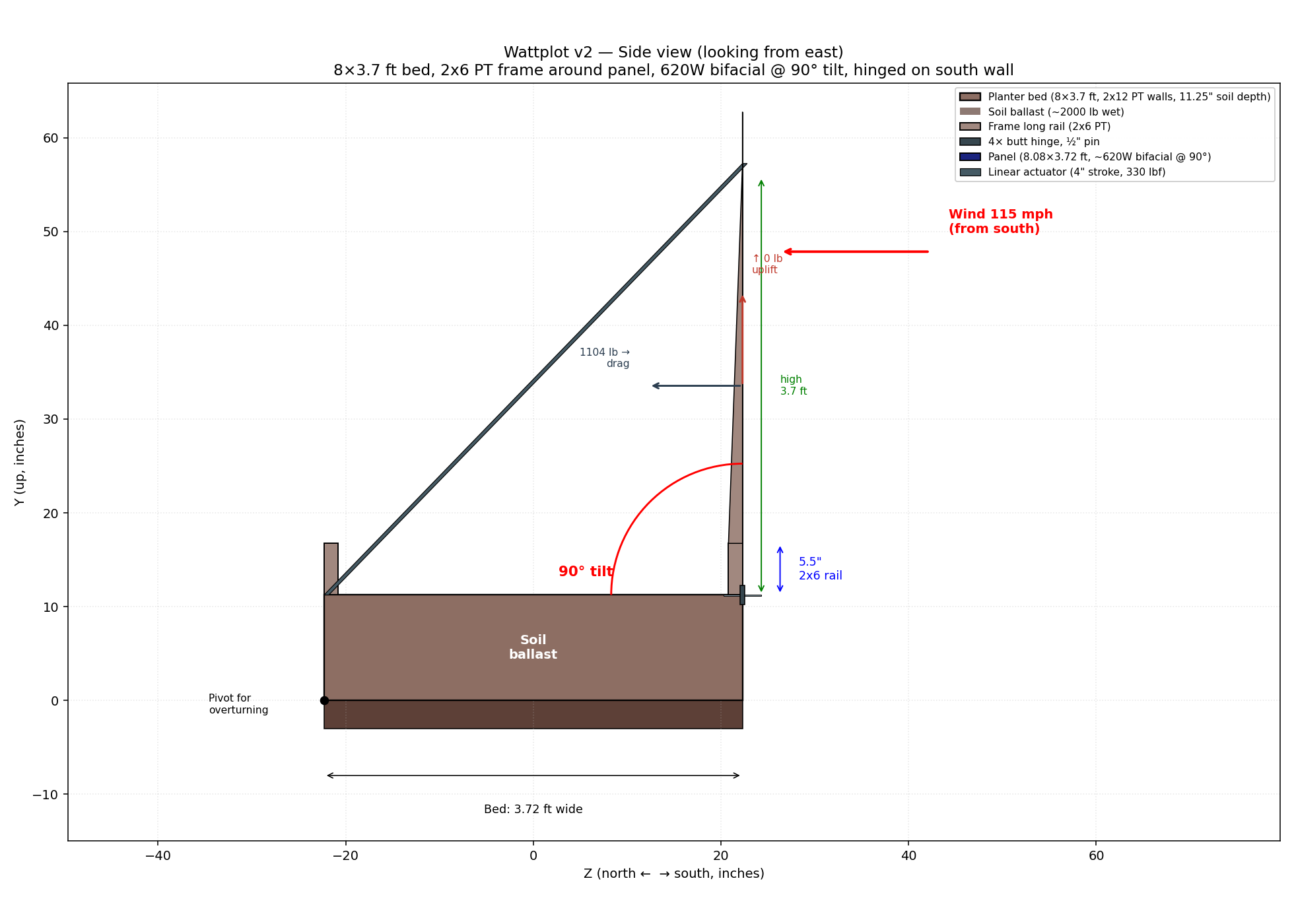

Side view, 90° tilt

Vertical. Retired in v3 — fails the wind calc.


Side view, 0° (folded)

Panel flat on the bed. The stow pose.

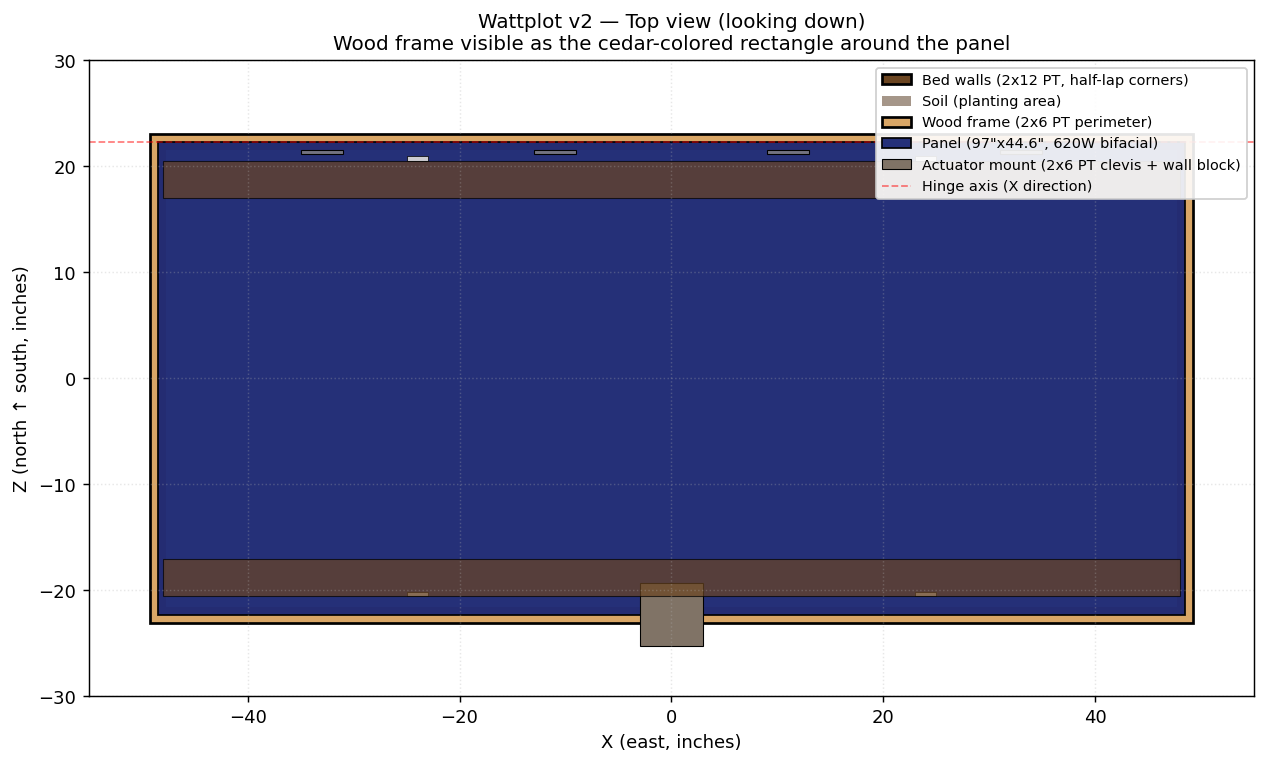

Top-down

Bed + frame + panel, looking straight down.

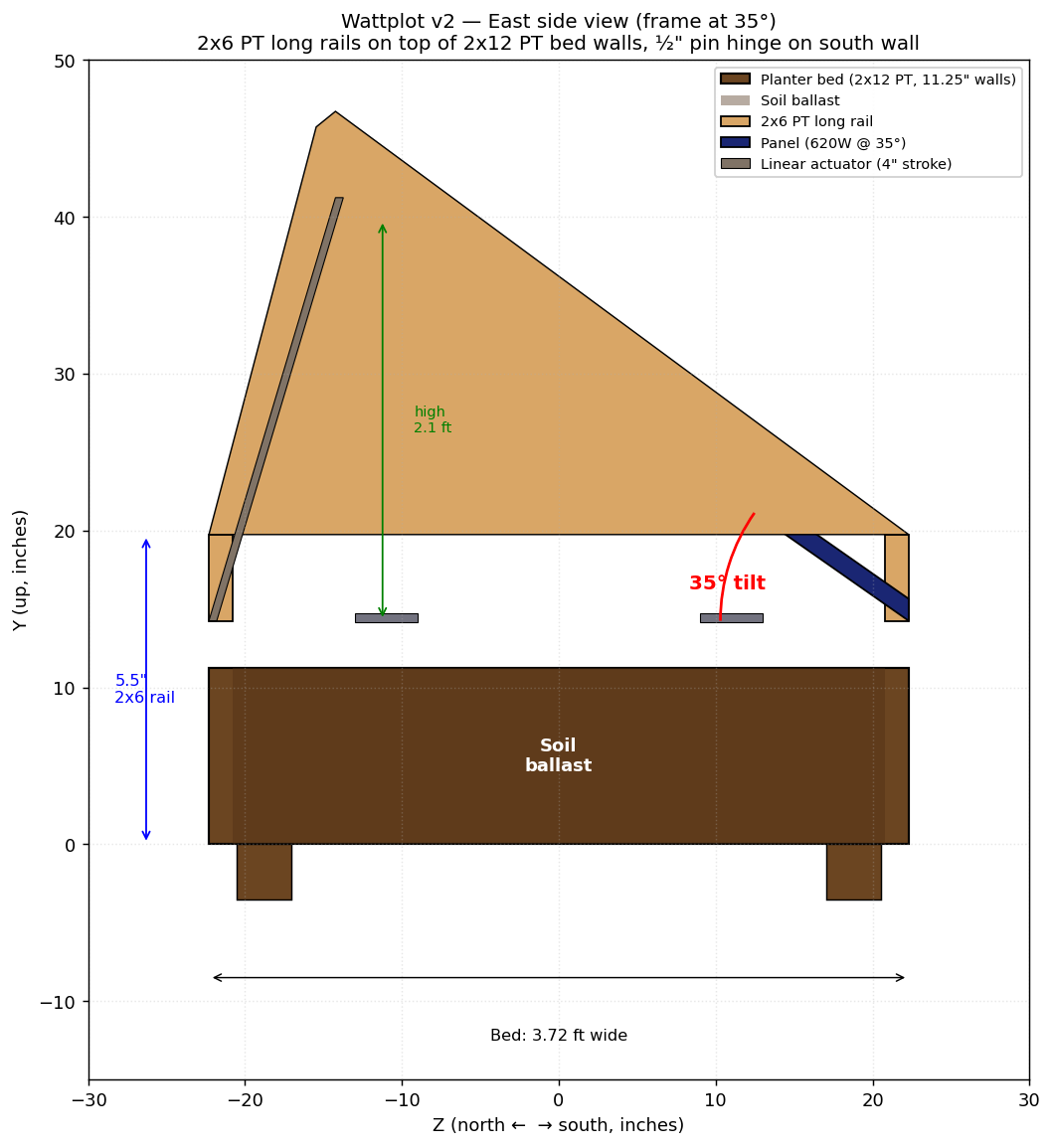

East elevation

Short side. PCB enclosure visible.

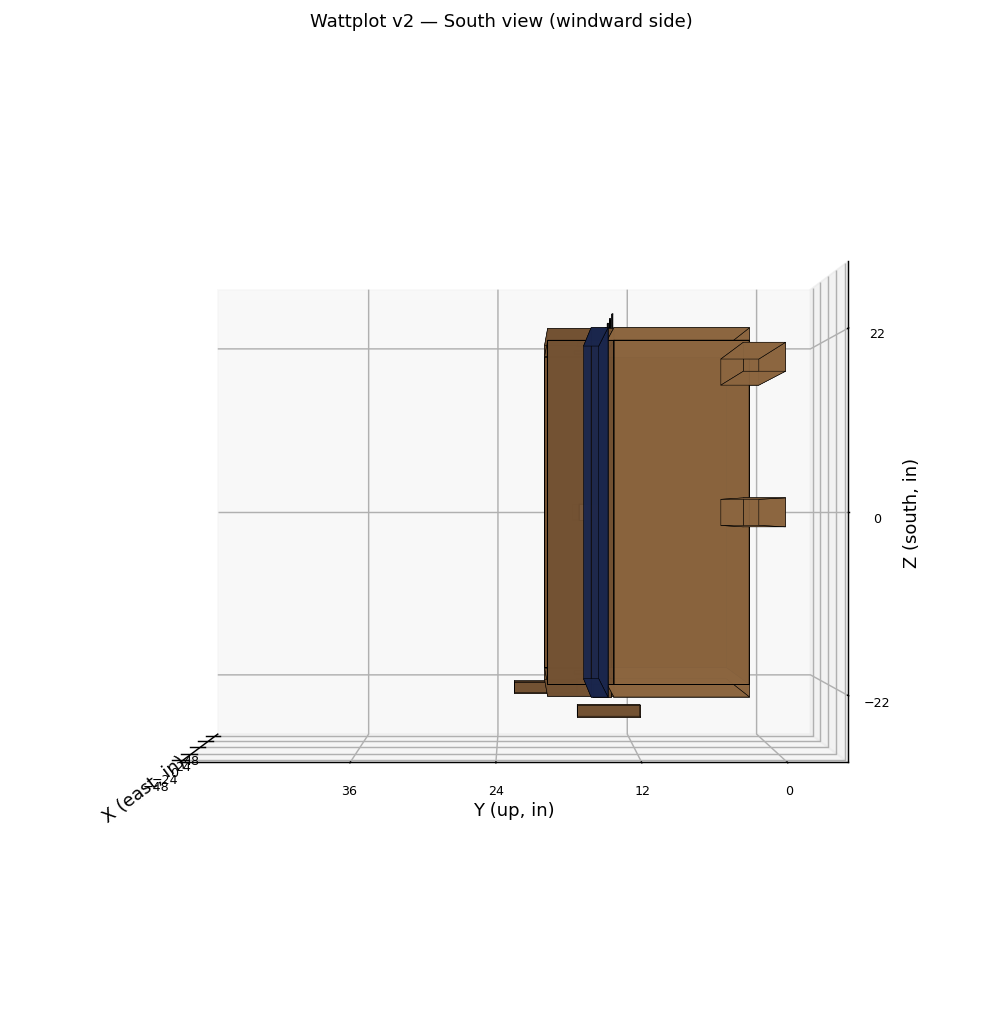

South elevation

Long side. Hinge axis, cable routing.

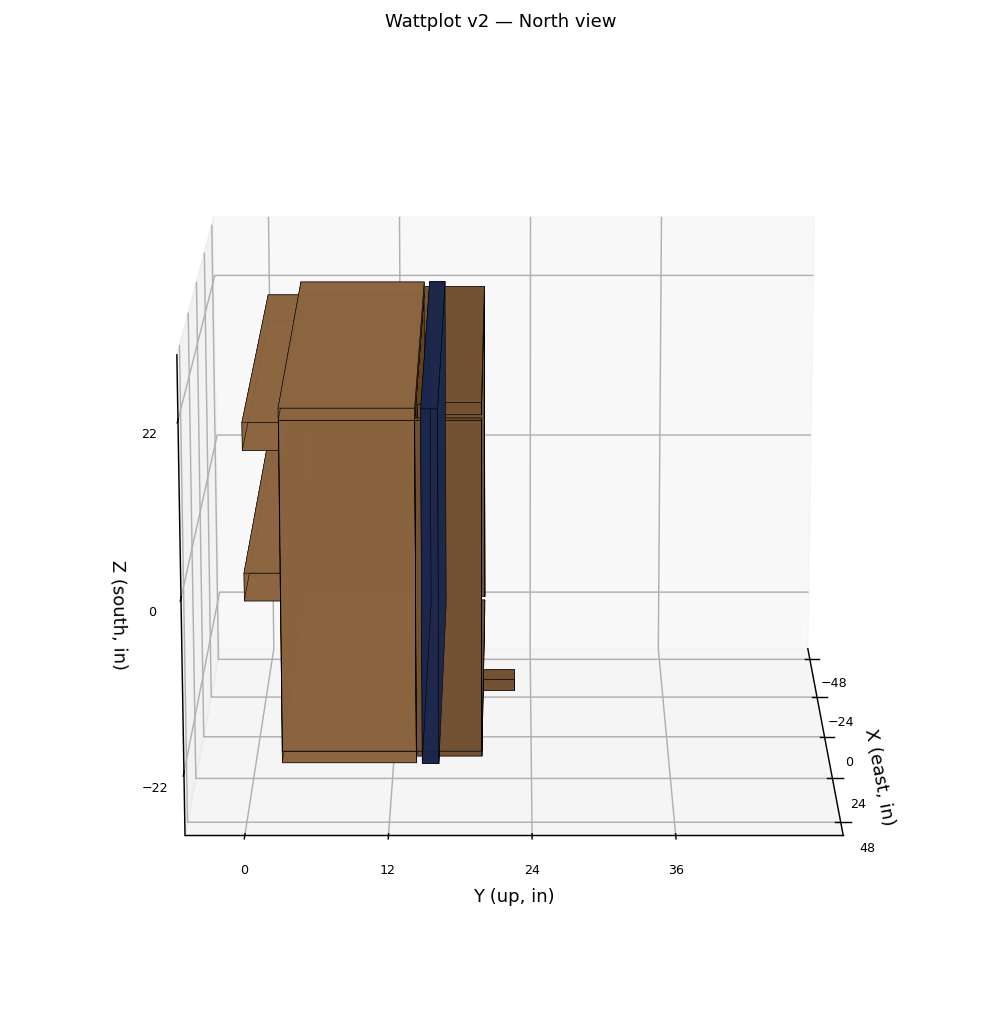

North elevation

Long side, opposite. Actuator mount visible.

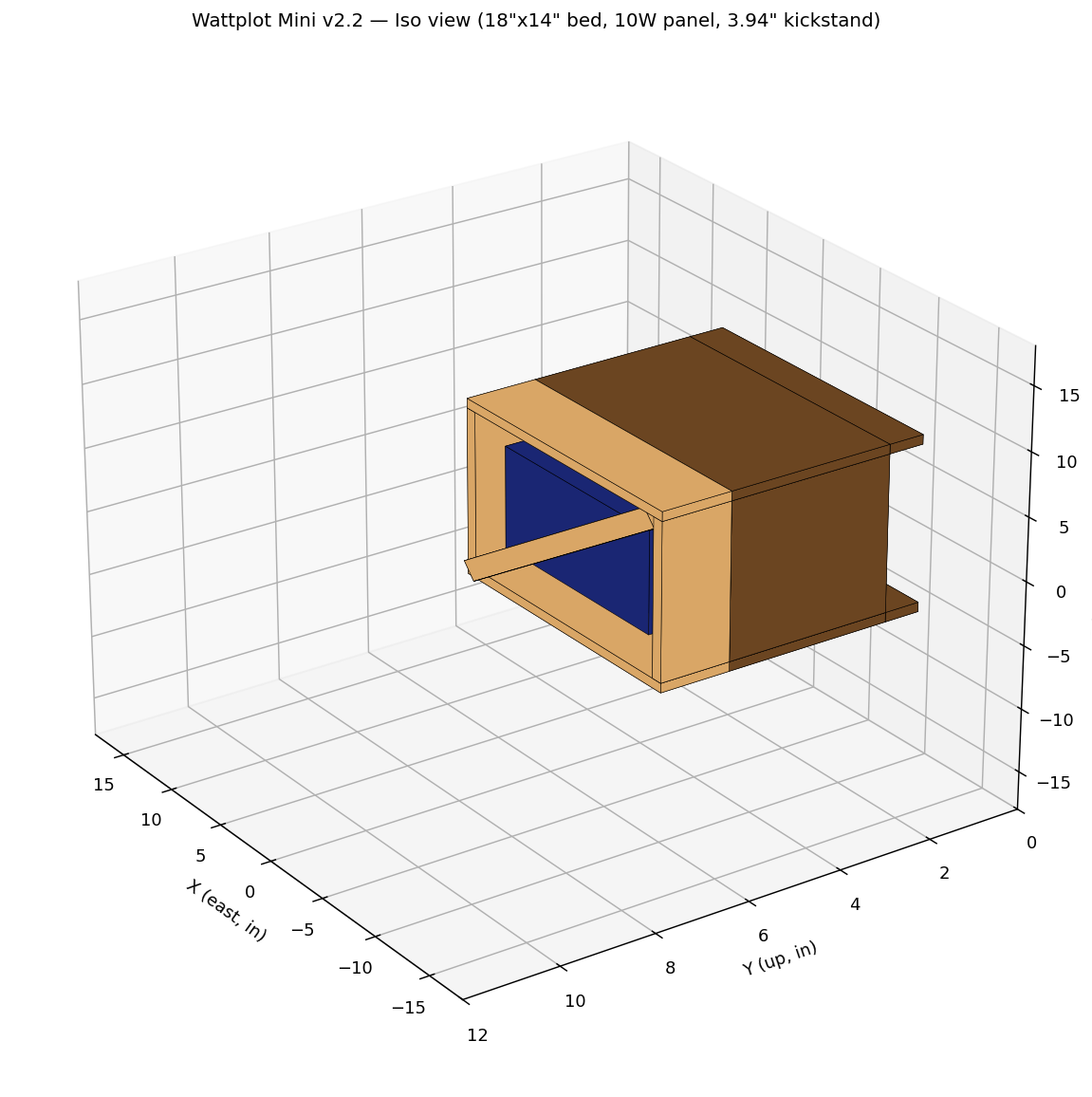

Mini build, isometric

18 × 14 inch, ~$193, 3–4 hours. The starter build.

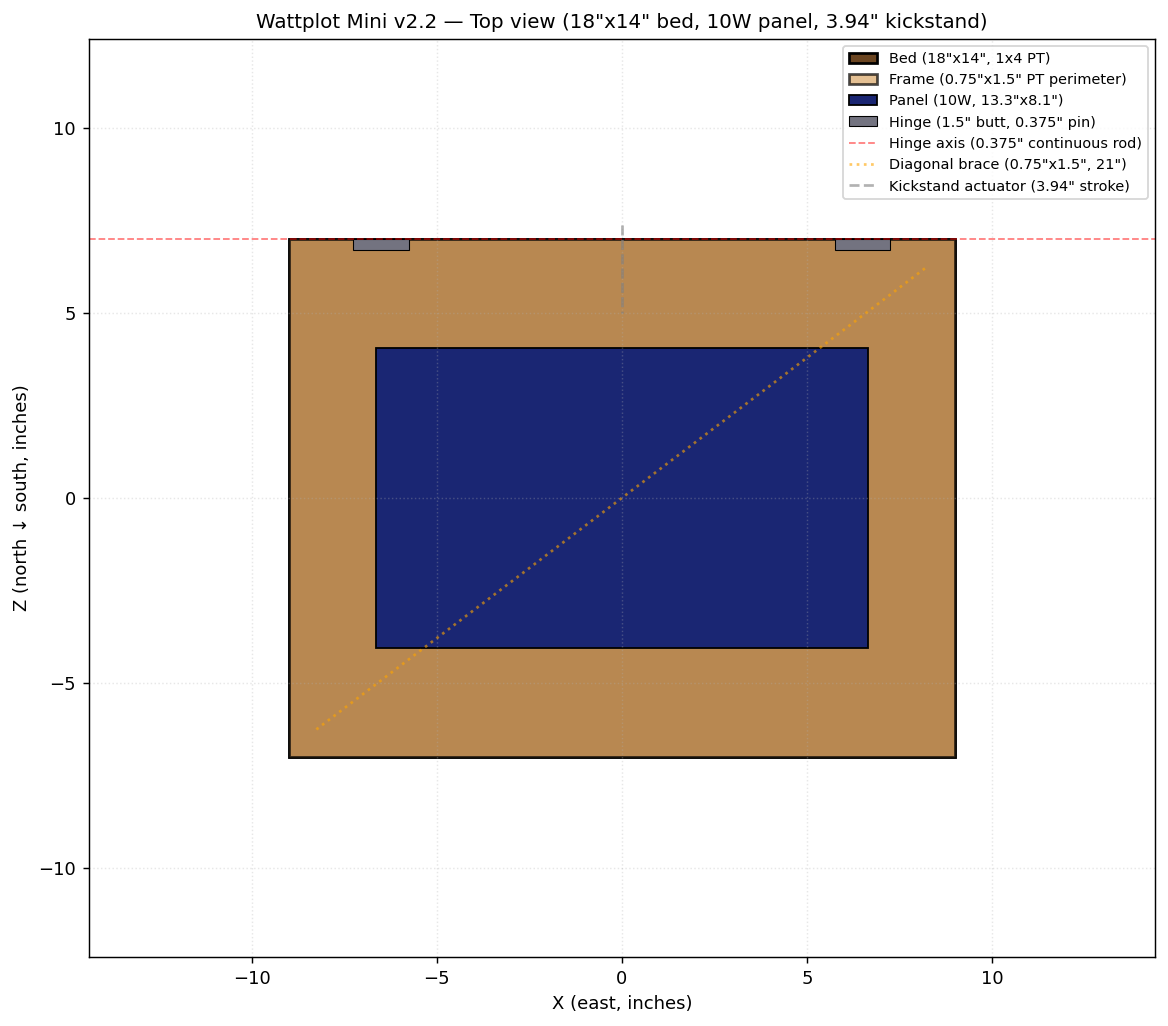

Mini build, top-down

Compact and clean.


Electronics 3 diagrams

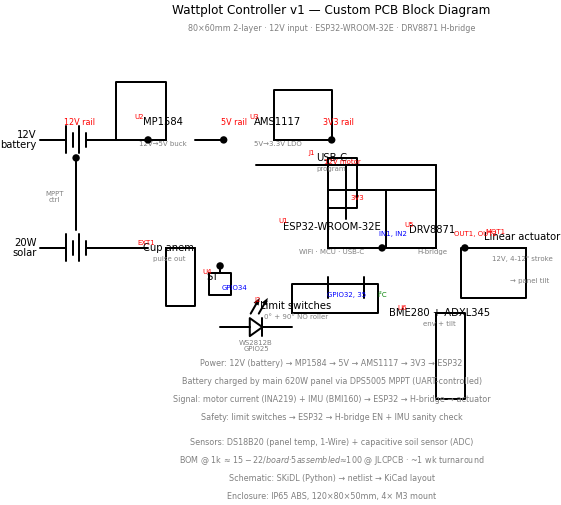

PCB schematic

14 sections, 5V/3.3V power tree, dual H-bridges.

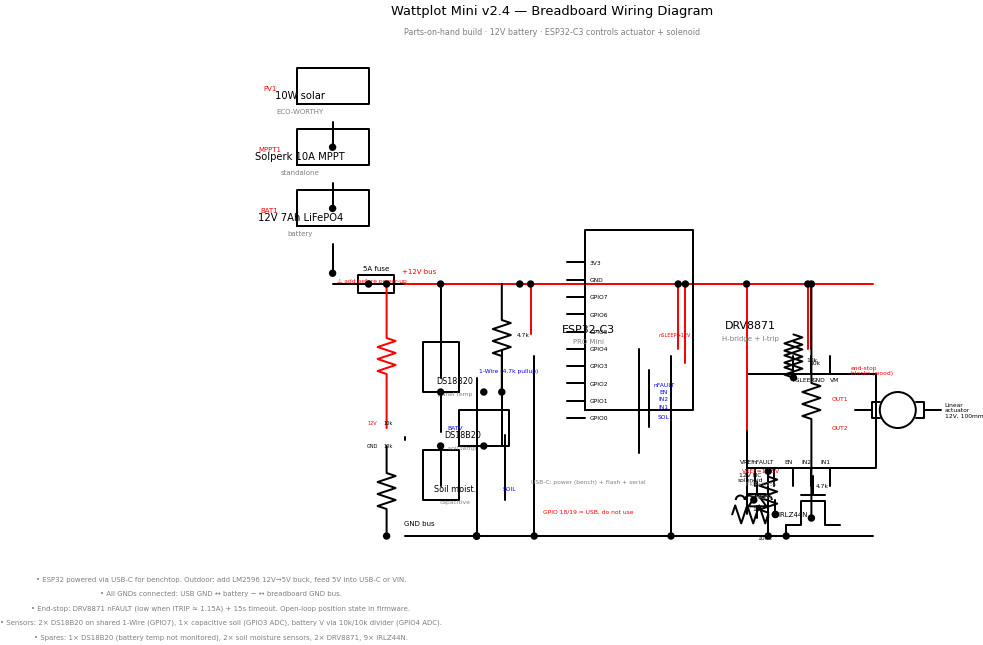

Mini breadboard diagram

For the mini build, no PCB. Where every wire goes.

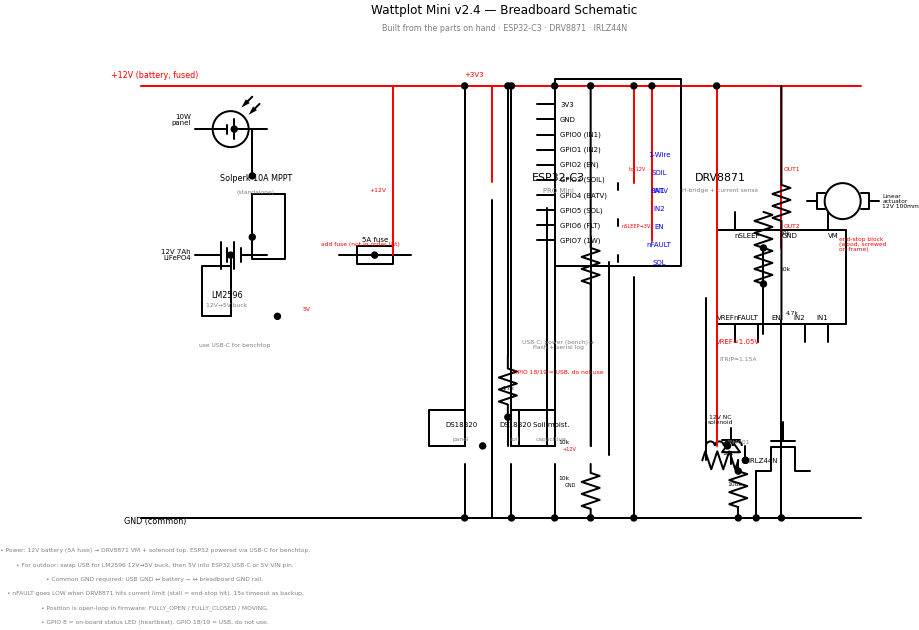

Mini breadboard schematic

The schematic version of the breadboard. For sanity-checking.


Simulations 6 charts

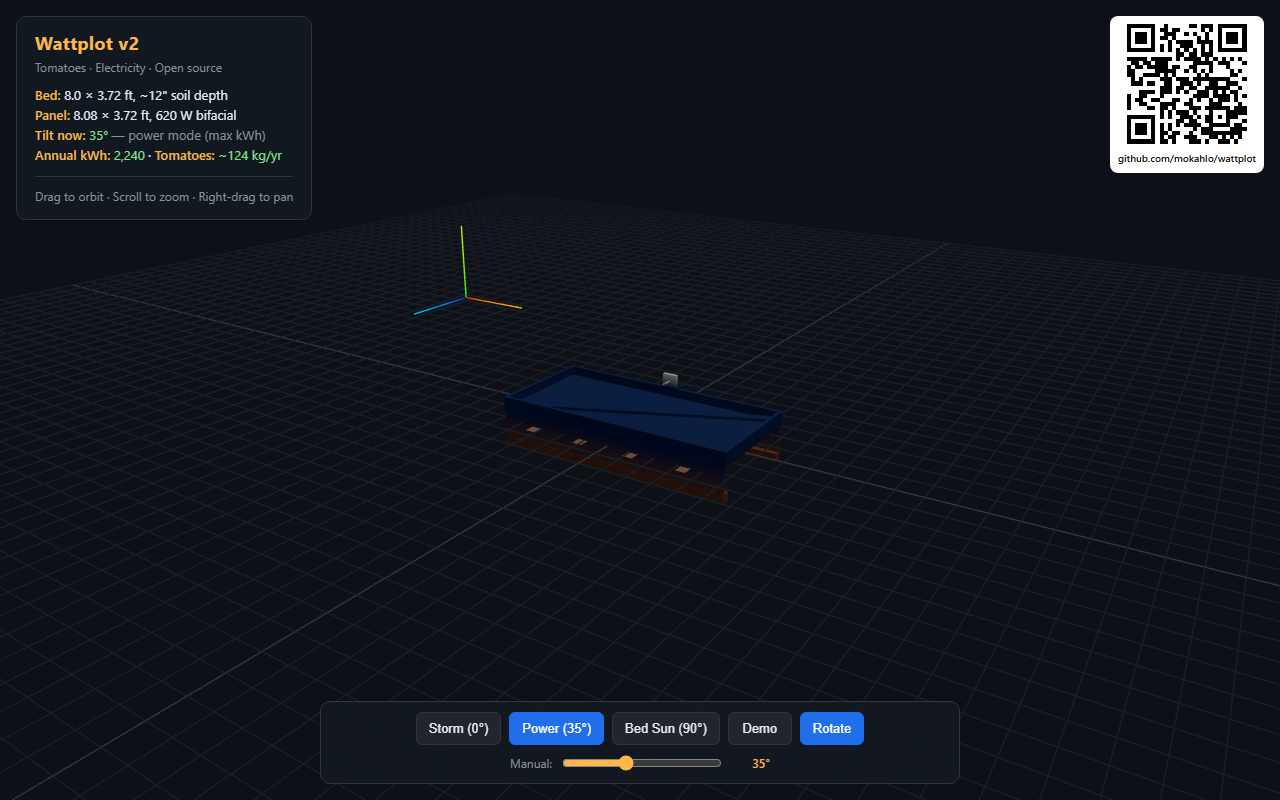

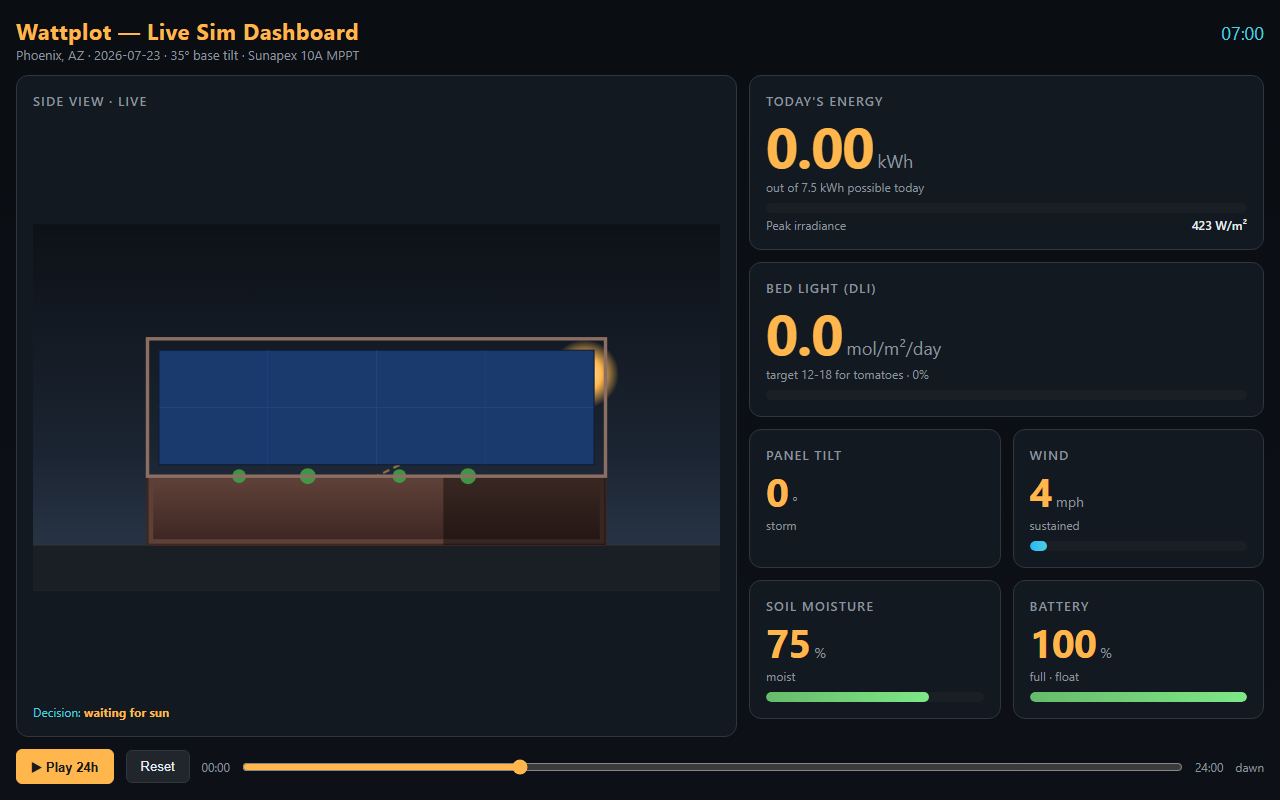

Live dashboard

Tilt, current, sun, wind, water, energy.

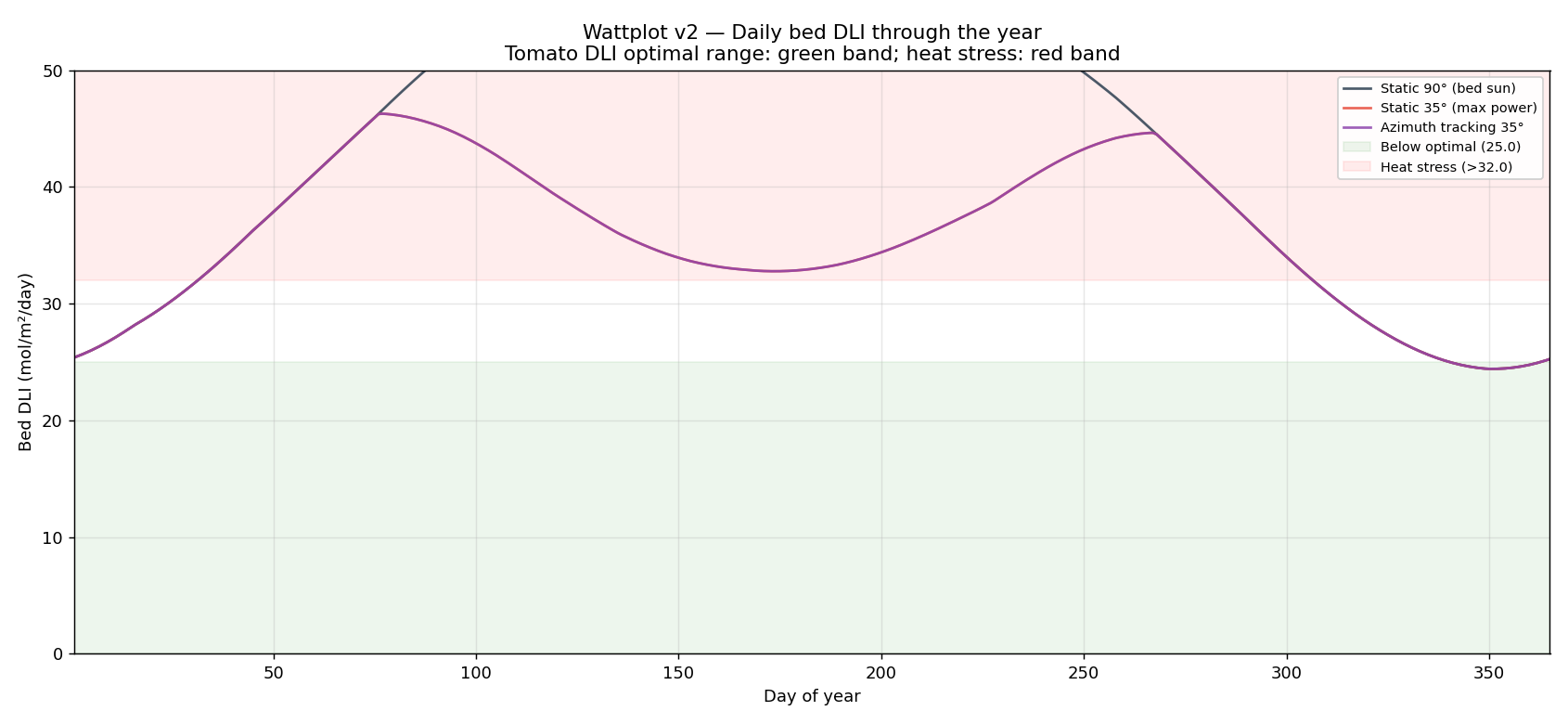

Daily DLI, 12 months

Simulated daily light integral at Phoenix lat (33.45°N).

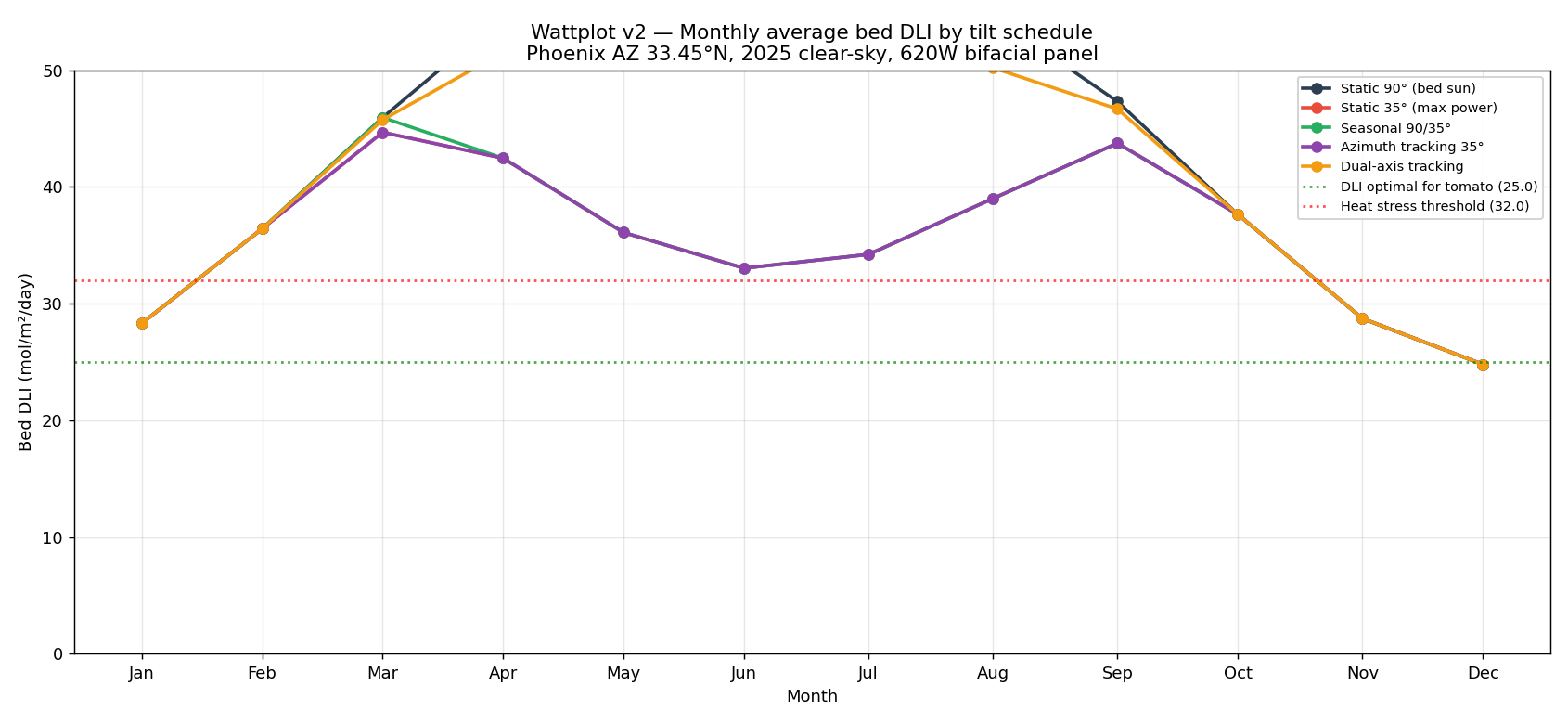

Monthly DLI

Same data, aggregated by month. Plan varieties around it.

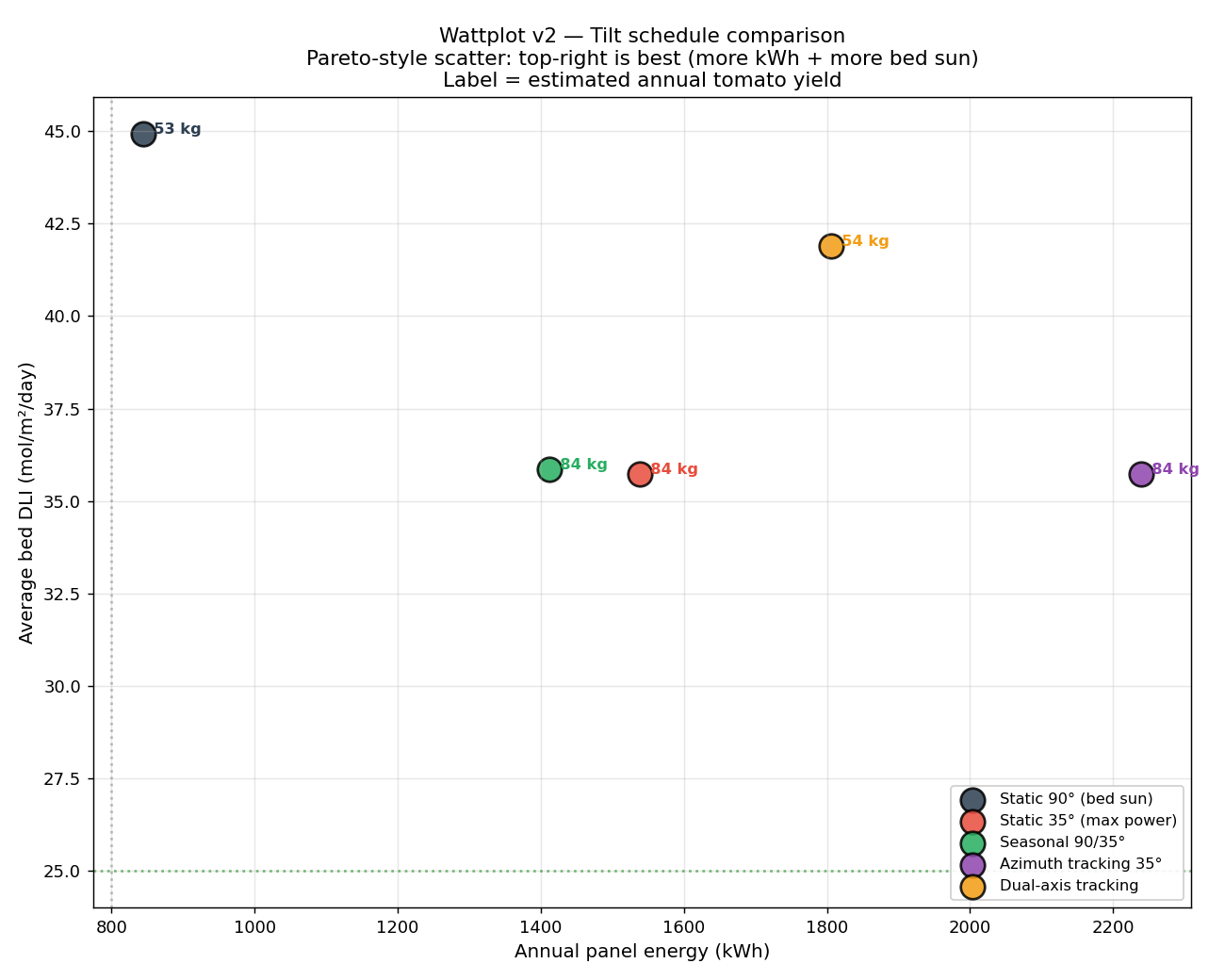

Sun position, 365 days

Where the sun is in the sky over a year.

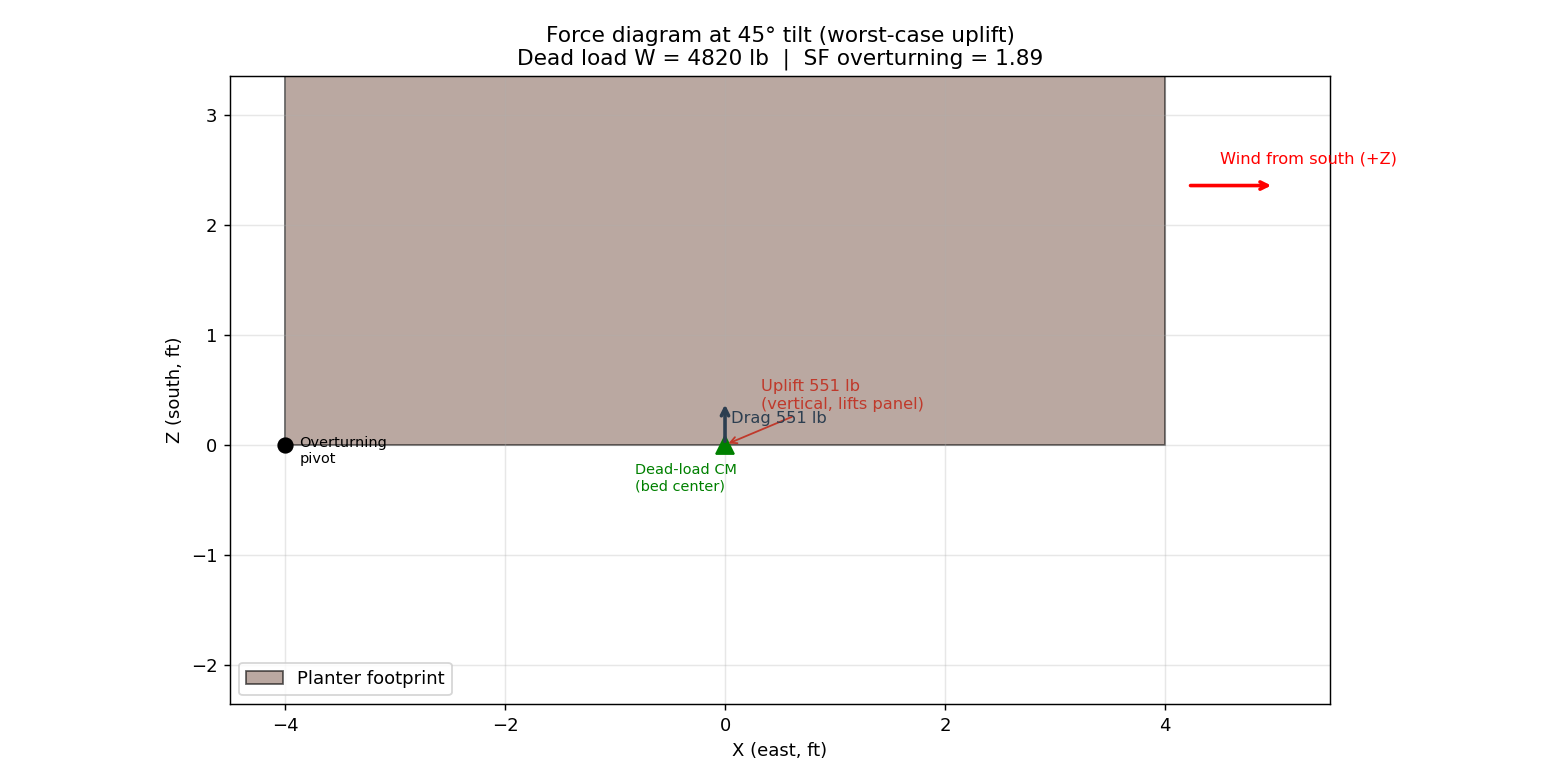

Wind load, forces

ASCE 7-22 wind forces on the tilted panel. The 35° max tilt is set by this.

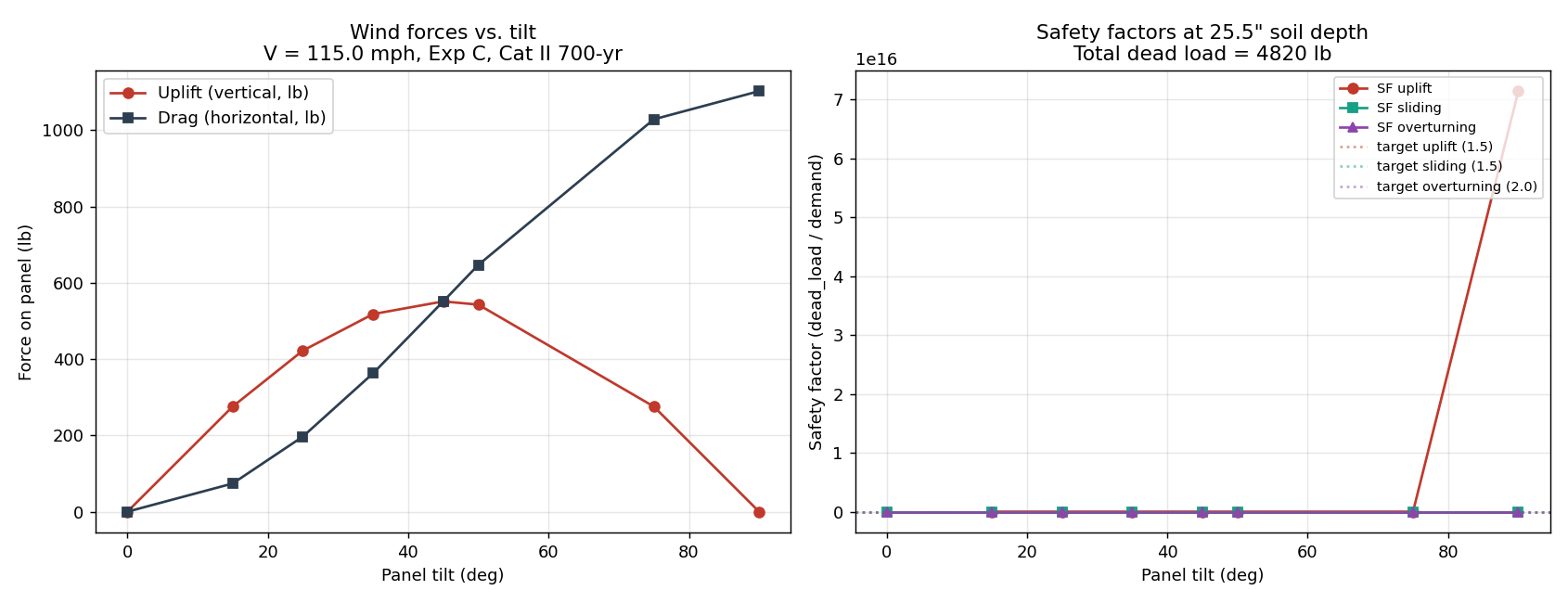

Wind load, summary

Safety factor at each tilt angle. Anything > 2.0 is acceptable.


Booth 9 wood-only renders

Booth-friendly wood-only renders — the frame and bed without the panel or electronics, optimized for a 4K display.

Wood frame, v8

Current best. The 8-iteration evolution.

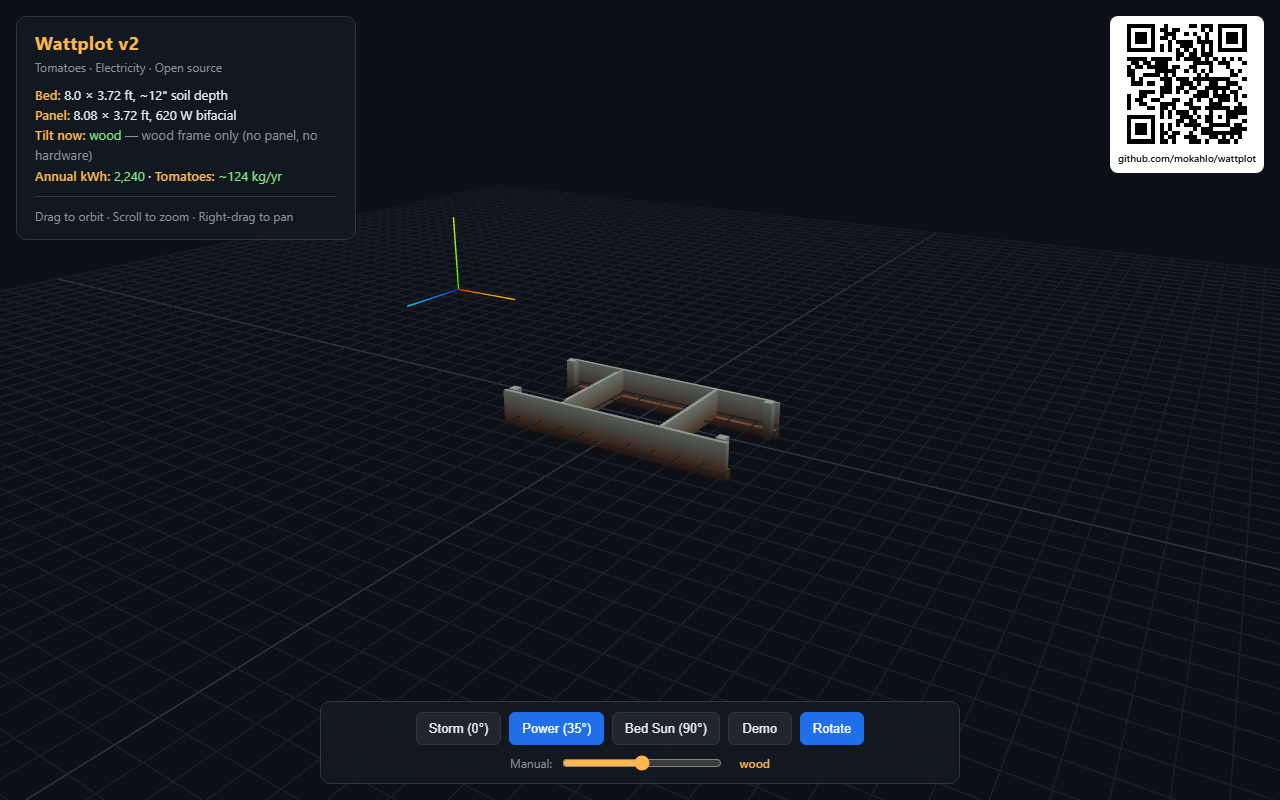

Wood frame, v8 (viewer bg)

Same as v8, viewer background baked in for a 4K booth display.


Wood frame, v1

First iteration. The "does this even make sense?" stage.


Wood frame, v2

Early hinge exploration.


Wood frame, v3

Mid-iteration. Hinge design settling down.


Wood frame, v4

Hinge + frame integrated.


Wood frame, v5

The 4-corner hinge arrangement took shape.


Wood frame, v6

Bracing and post proportions refined.


Wood frame, v7

Just before v8. Almost there.


Diagrams 4 system diagrams

Sophisticated SVG diagrams — the system block, power flow, firmware state machine, and assembly sequence. Click any preview for the full annotated version on the Diagrams page.

System block diagram

Panel, MPPT, battery, MCU, motor, solenoid, sensors — color-coded wires. The whole controller on one page.

#block

Power flow

Battery → MPPT → 12 V / 5 V / 3.3 V rails. What each subsystem actually sees on its supply pin.

#power

Firmware state machine

Normal, Monitoring, Folding, Locked — every transition, every trigger, every guard. The control loop in one picture.

#state

Assembly sequence

Nine steps from lumber to live system. Frame build, hinge alignment, panel mount, wiring, MPPT, controller, test.

#assembly

Add a concept

Drop a PNG/JPG into docs/gallery/<category>/ and add a card to this page. The "Add concepts ↗" link in the top nav goes straight to the right GitHub folder.

Categories: build/ · electronics/ · simulations/ · booth/
